DAC10GSZ
Manufacturer:
Analog Devices
Mfr.Part #:
DAC10GSZ
Datasheet:
Description:

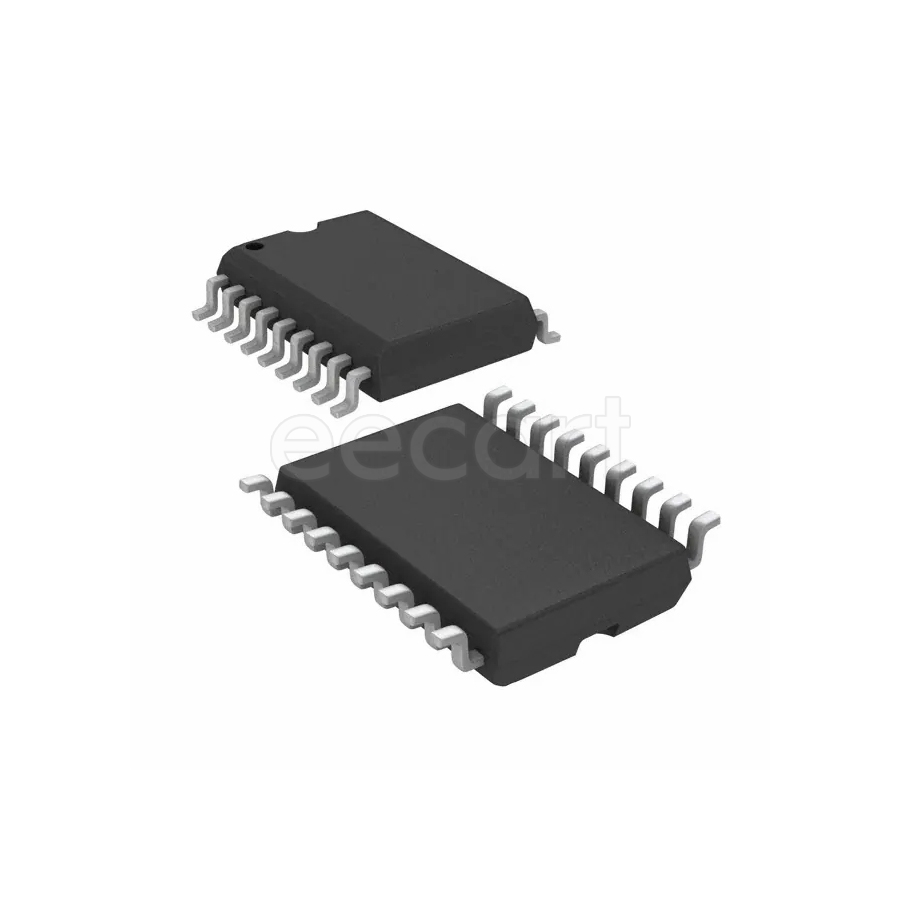

Digital to Analog Converters (DACs) SOIC-18 SMD/SMT number of channels:1 number of bits:10 Number of D/A Converters:1
| Parameter | Value |
|---|---|
| Length | 11.75 mm |
| Width | 7.6 mm |
| Max Operating Temperature | 70 °C |
| Min Operating Temperature | 0 °C |
| Number of Pins | 18 |
| Height | 2.35 mm |
| REACH SVHC | No SVHC |
| Contact Plating | Tin |
| Interface | Parallel |
| Lifecycle Status | Production (Last Updated: 2 weeks ago) |
| Max Power Dissipation | 285 mW |
| Max Supply Voltage | 36 V |
| Min Supply Voltage | 6 V |
| Power Dissipation | 231 mW |
| Number of Channels | 1 |
| Number of Bits | 10 |
| Supply Type | Dual |
| Number of DAC Channels | 1 |
| Integral Nonlinearity (INL) | 1 LSB |
| Number of Converters | 1 |
| Settling Time | 85 ns |
| Dual Supply Voltage | 15 V |
| Resolution | 1.25 B |
| Max Dual Supply Voltage | 18 V |
| Schedule B | 8542390000 |
| Manufacturer Lifecycle Status | PRODUCTION (Last Updated: 2 weeks ago) |
| RoHS | Compliant |
| Packaging | Tube |
| Output Type | Current |
| Reference Type | External |
| Interface Type(Data Interface) | Parallel |
| Analog Supply Voltage | ±18 V |
| Max Digital Supply Voltage | 36 V |
| Min Digital Supply Voltage | 9 V |
| Core Architecture(core/core processor) | Multiplying DAC |
| Differential Output | Yes |
| Number of D/A Converters | 1 |
Stock: 25
Distributors
pcbx
pcbxUnit Price$9.36035
Ext.Price$9.36035
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $9.36035 | $9.36035 |
| 10 | $7.40195 | $74.01950 |
| 25 | $7.11350 | $177.83750 |
| 50 | $6.83629 | $341.81450 |
| 100 | $6.56988 | $656.98800 |
| 300 | $6.31385 | $1894.15500 |
| 500 | $6.06780 | $3033.90000 |
| 1000 | $5.83142 | $5831.42000 |
